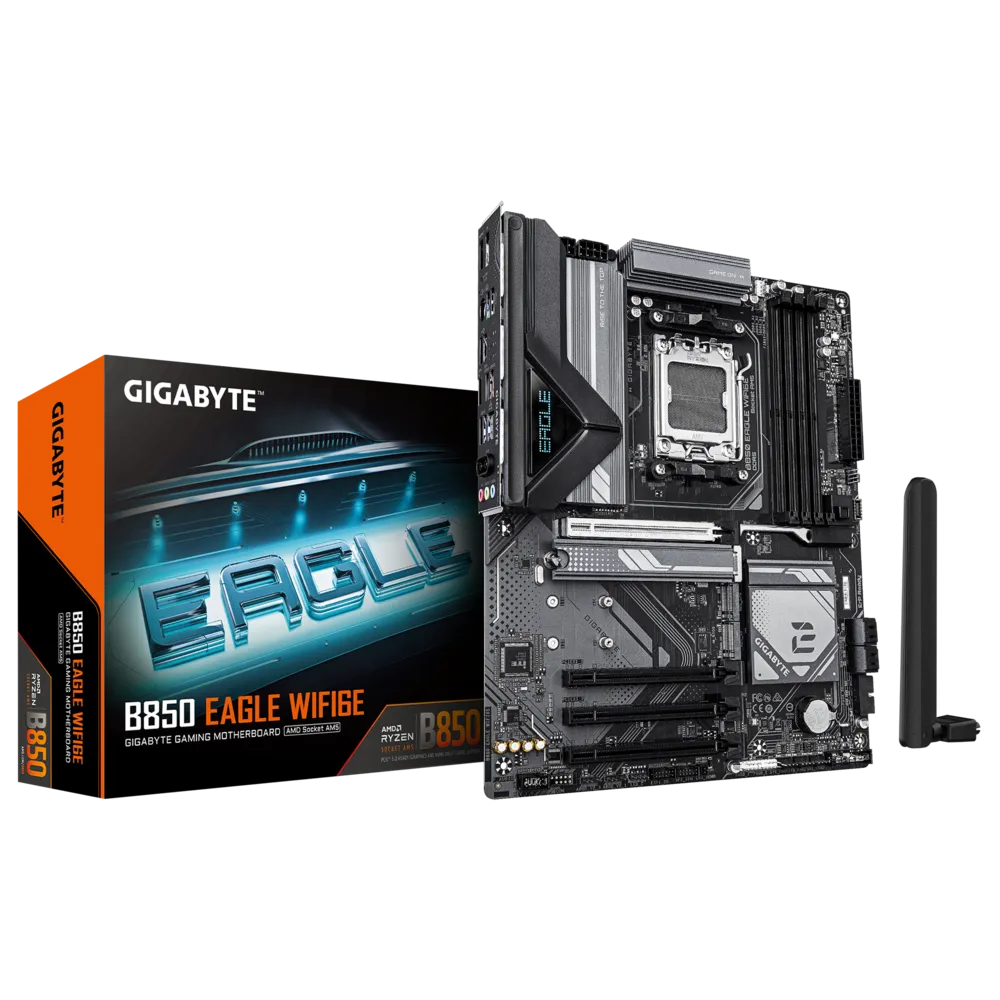

Gigabyte B850 EAGLE WIFI6E Motherboard

Feature Highlights

• AMD Socket AM5 : Supports Ryzen™ 9000 / 8000 / 7000 Series Processors
• DDR5 OC up to 8200MT/s : Dual Channel with 4× DIMMs, up to 256GB, EXPO™ & XMP Ready

• AMD B850 Chipset : Optimized for performance, connectivity, and future AMD platforms
• PCIe 5.0 x16 Slot : GPU or NVMe-ready for ultra-fast data throughput
• Triple M.2 Slots : PCIe 5.0/4.0 support with RAID 0/1/5/10 for high-speed SSDs
• 4× SATA 6Gb/s : Flexible storage with RAID 0/1/10 for traditional drives
• Wi-Fi 6E + Bluetooth 5.3 : Intel AX210 or Realtek RTL8852CE, tri-band wireless with BT 5.3
• Integrated Radeon Graphics : HDMI 2.1 & DP 1.4 ports with 4K@144Hz HDR output (CPU dependent)
• Realtek® 7.1 Audio : High-definition sound with reconfigurable jacks via audio software

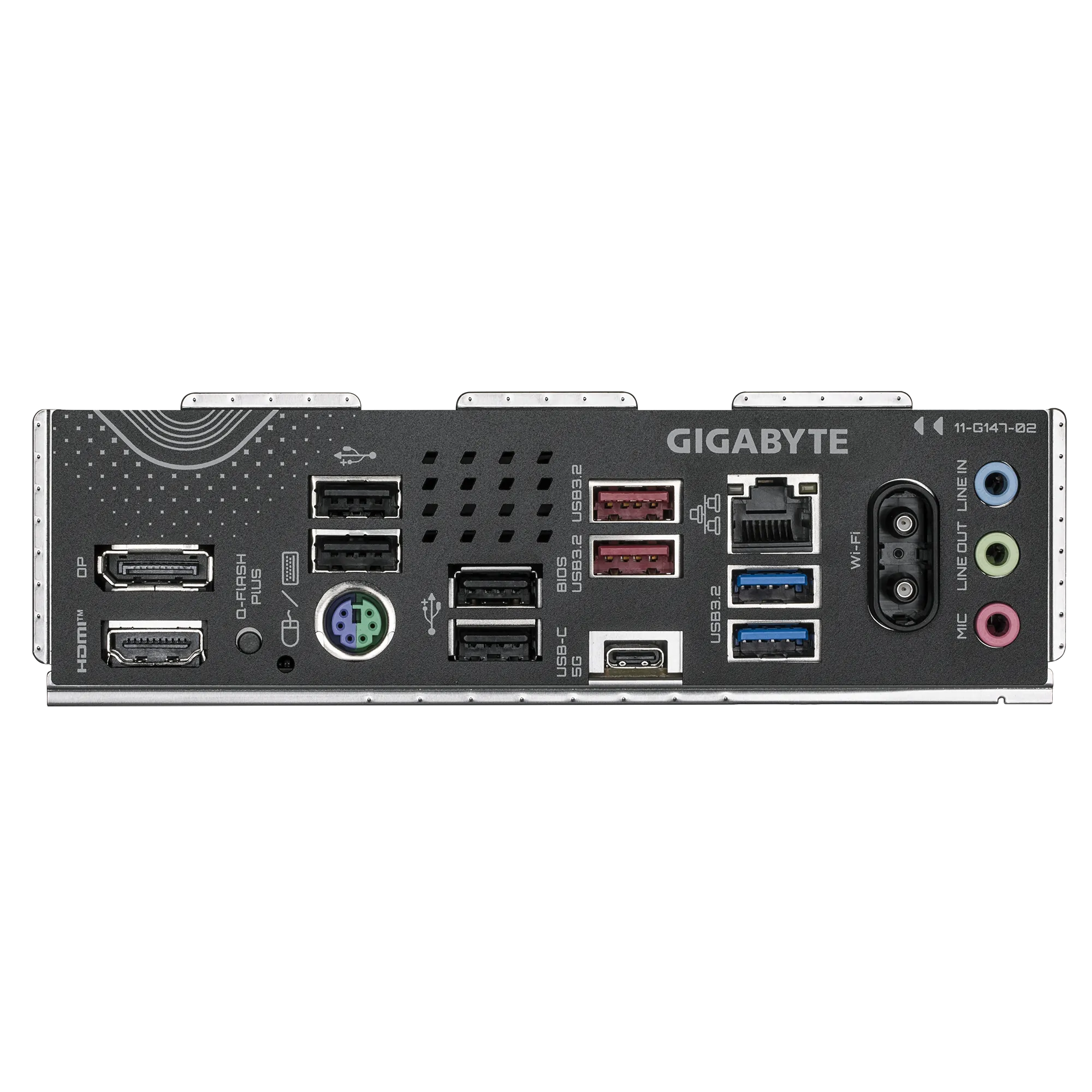

• USB Versatility : Includes USB-C®, Gen 2, Gen 1, and USB 2.0 across front and rear I/O
• EZ-Latch Design : Quick-release PCIe and M.2 slots for easy upgrades (Q-Flash Plus support)
• RGB Fusion Ready : 3× ARGB Gen2 headers + 1× RGB for custom lighting setups
• Smart Fan Control : Multiple hybrid fan/water pump headers with real-time monitoring
• Trusted Platform Module Header : Windows 11-ready security via optional TPM module
• ATX Form Factor : 30.5 × 24.4 cm, Windows 11/10 64-bit OS support
